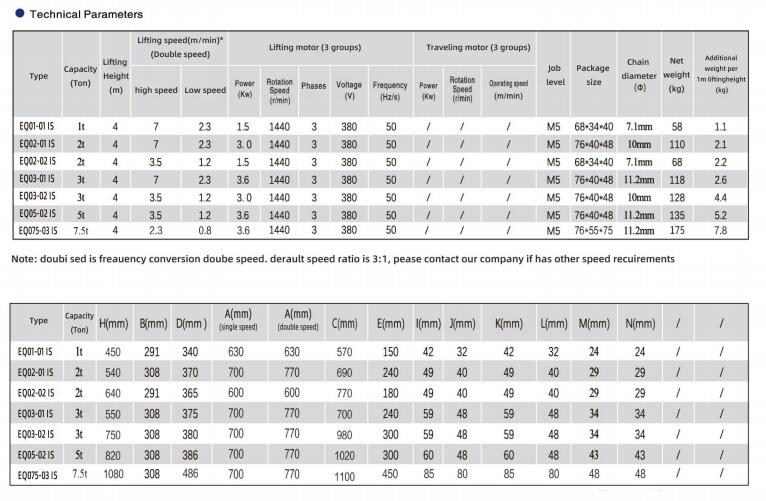

Electric chain hoist have many parameters which determine the various performance, working conditions, etc. of the hoist. Here I will introduce the mainly parameters to you.
Electric chain hoist have many parameters which determine the various performance, working conditions, etc. of the hoist. Here I will introduce the mainly parameters to you.
1. Capacity: This is the maximum working load of the hoist. Overload will lead damage to the hoist.
2. Lift height: This is the maximun lift height and it is depend on the chain length.
3. Lifting speed: 1.17-7m/min, the heavier the workload, the slower the speed.
4. Motor power: We use 1.5kw, 3kw, 3.6kw motors in our hoist.
5. Motor rotaion speed: Fixed at 1440rpm
6.Phases: You can choose single phase or 3 phases accroding to your electricity demand.
7.Voltage: 110-690V
8. Frequency: 50/60Hz
9. Chain diameter: 7.1/10/11.2mm, we will choose it according to the capacity.

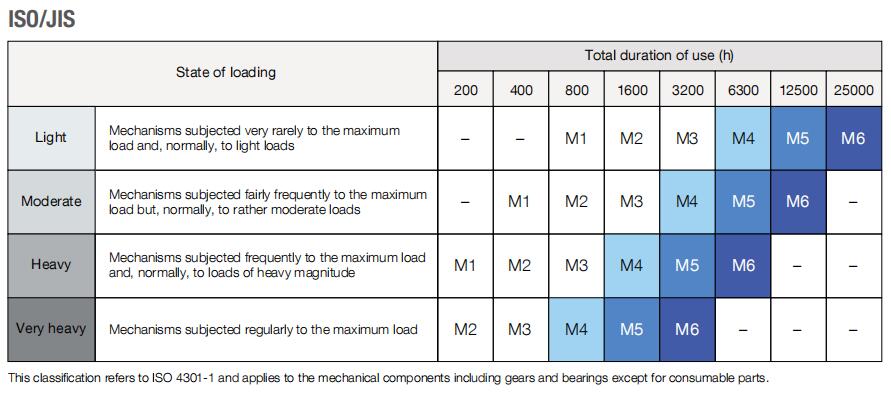

10. Work level: M3/ M5 , this means the service lift of the hoist.
