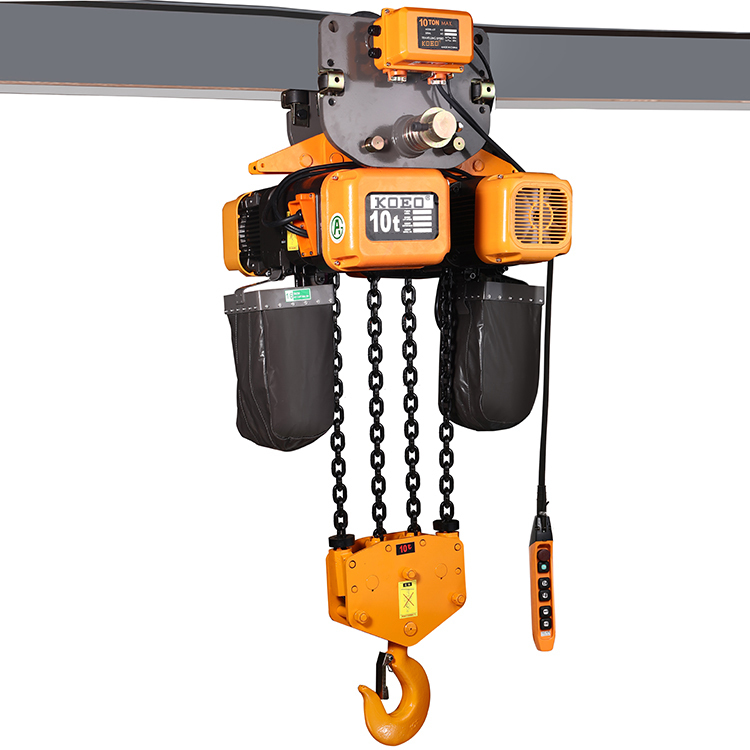

10-30T Four Chain Hook Type Electric Chain Hoist EQ Series

No.EQ10-04

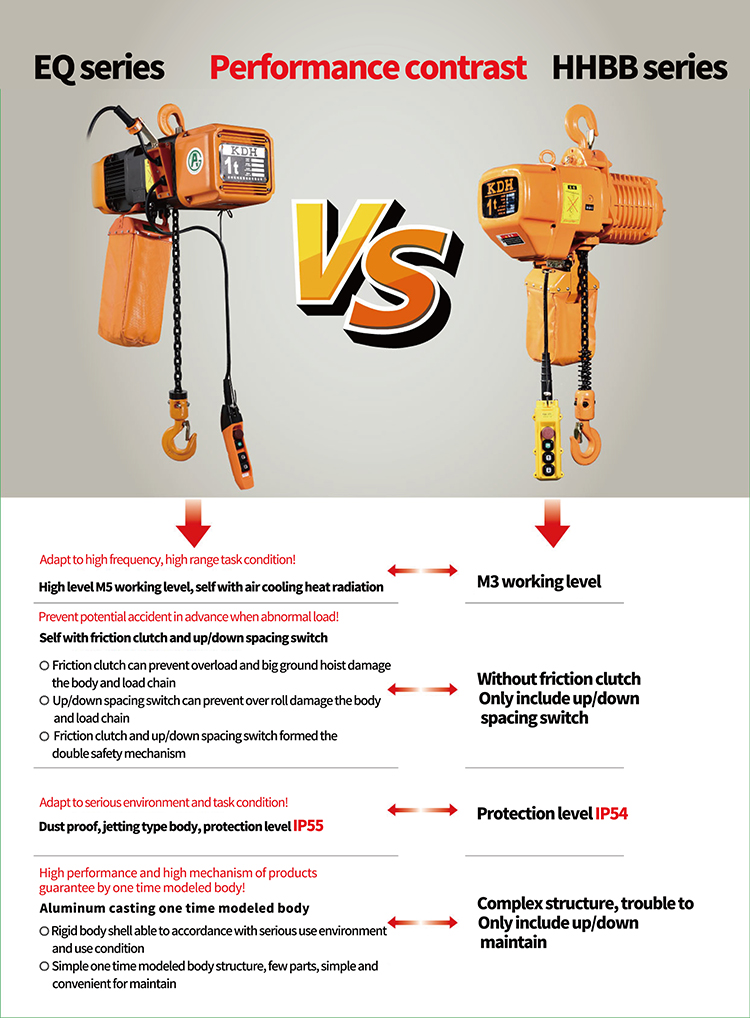

Junchi offers high quality electric chain hoists. EQ series is an upgraded type. We adjust the hoist body to smaller size and greatly improve the performance. It is superior to the HHBB series in all aspects. The capacity range is 0.5-30T.

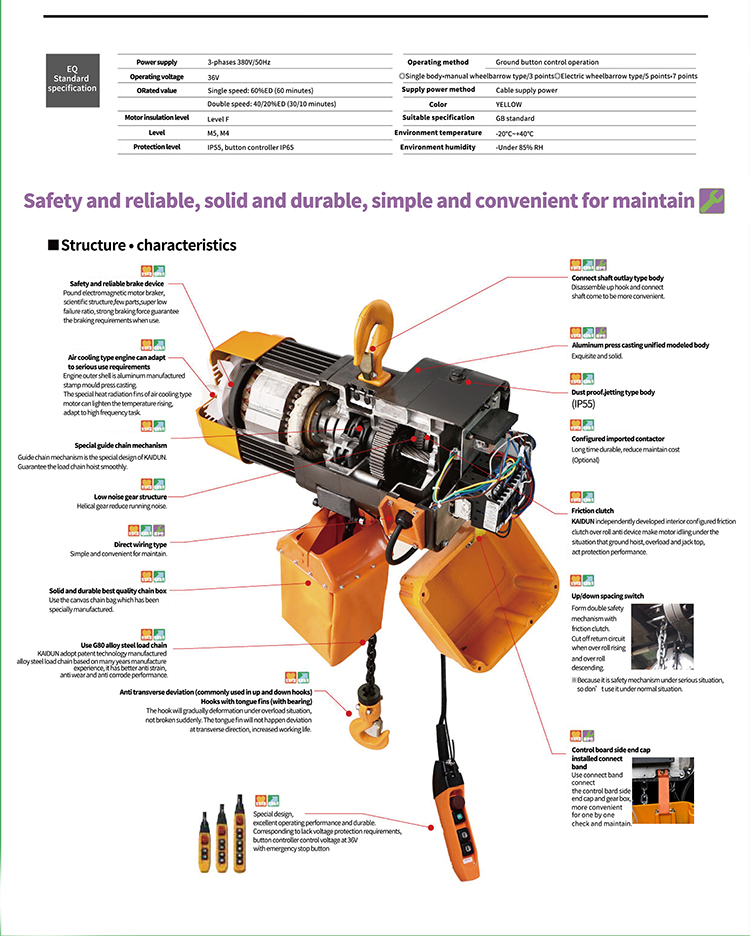

Features:
1. M5 work level: Means a much longer service life.
2. IP55 protection level: Can work continuously for longer periods of time in harsh environments.
3. With friction clutch: Together with up/down limit switch, dual security guarantee.
4. Integrated aluminum casting molding: Lightweight and easy to maintain.
  • 10-30T Four Chain Hook Type Electric Chain Hoist EQ Series
  • 10-30T Four Chain Hook Type Electric Chain Hoist EQ Series
  • 10-30T Four Chain Hook Type Electric Chain Hoist EQ Series
  • 10-30T Four Chain Hook Type Electric Chain Hoist EQ Series
  • 10-30T Four Chain Hook Type Electric Chain Hoist EQ Series

Description

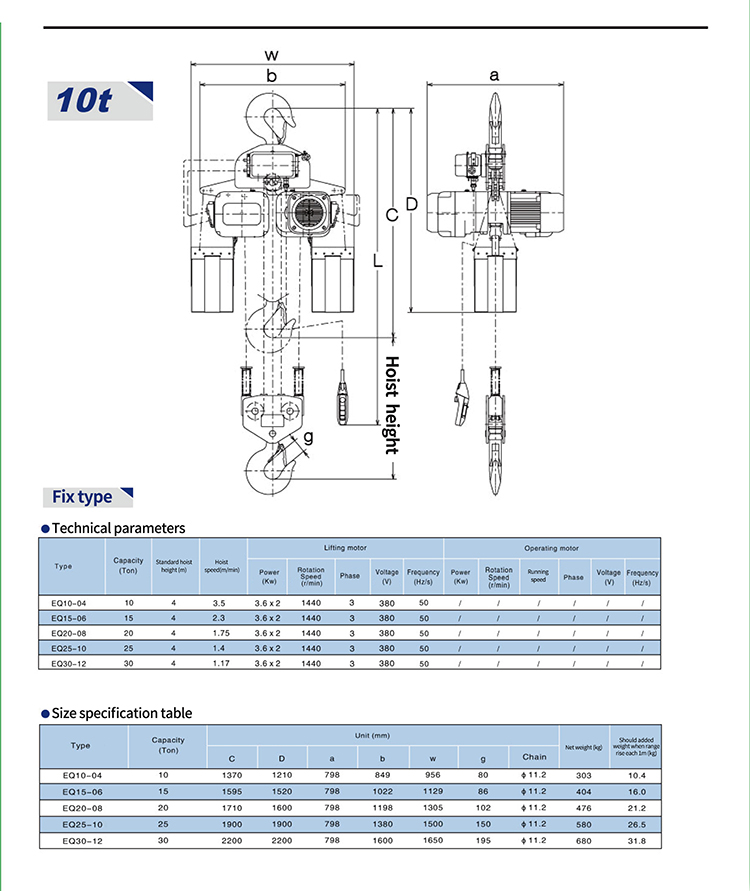

Product parameters
Model Name Lifting weight speed power work duty Insulation class Order quantity Price (USD)
EQ 10-04 EQ Series Hook type   10T 10T 3.5m/min 3.6KW*2 M5 F 1 2400
EQ 15-06 EQ Series Hook type    15T 15T 2.3m/min 3.6KW*2 M5 F 1 3200
EQ 20-08 EQ Series Hook type   20T 20T 1.75m/min 3.6KW*2 M5 F 1 4000
EQ 25-10 EQ Series Hook type   25T 25T 1.4m/min 3.6KW*2 M5 F 1 4800
EQ 30-12 EQ Series Hook type   30T 30T 1.17m/min 3.6KW*2 M5 F 1 5600
Logistics information
Each product length*width*height (cm) Each piece of merchandise(kg) Delivery period
100*76*80 280 20
120*76*85 340 20
140*76*90 400 20
160*40*61 440 20
180*46*61 480 20
