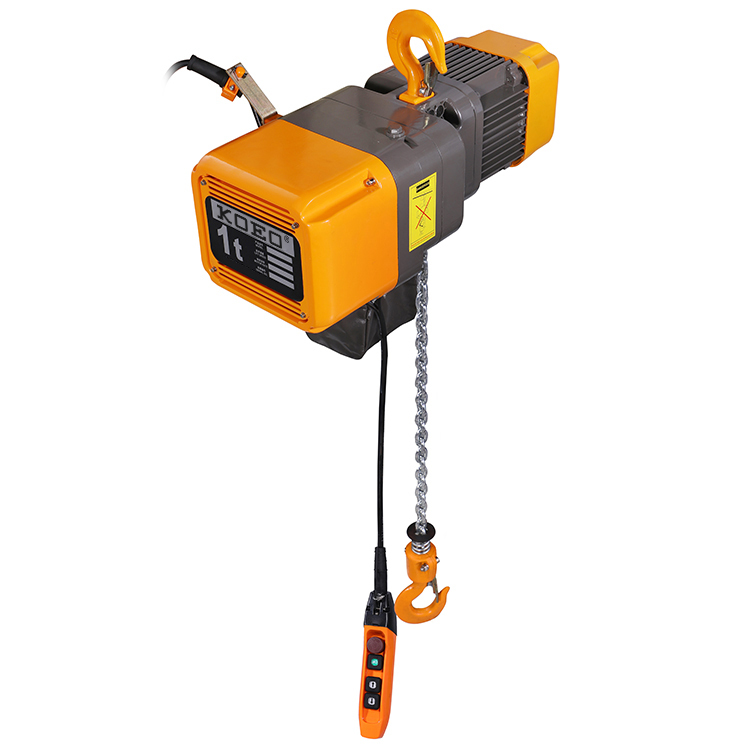

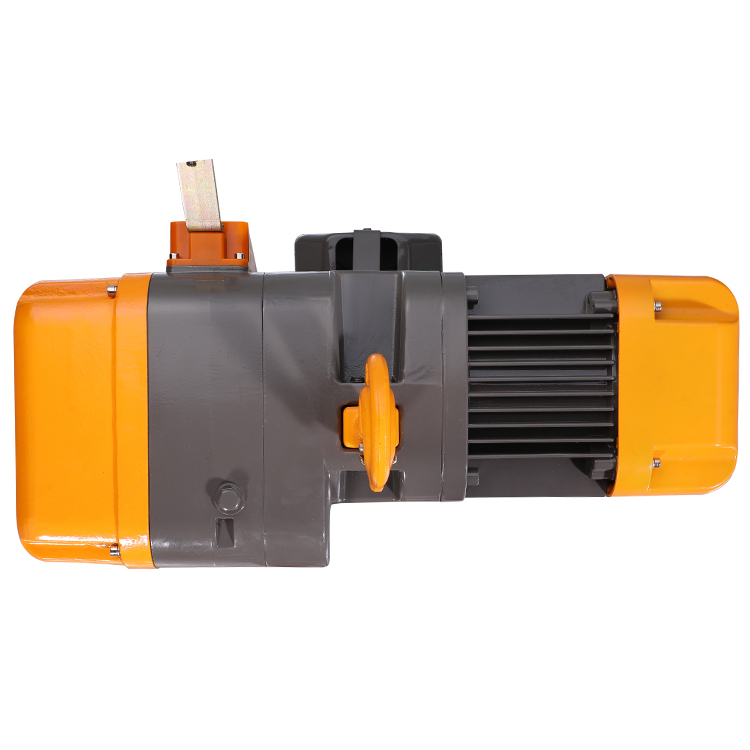

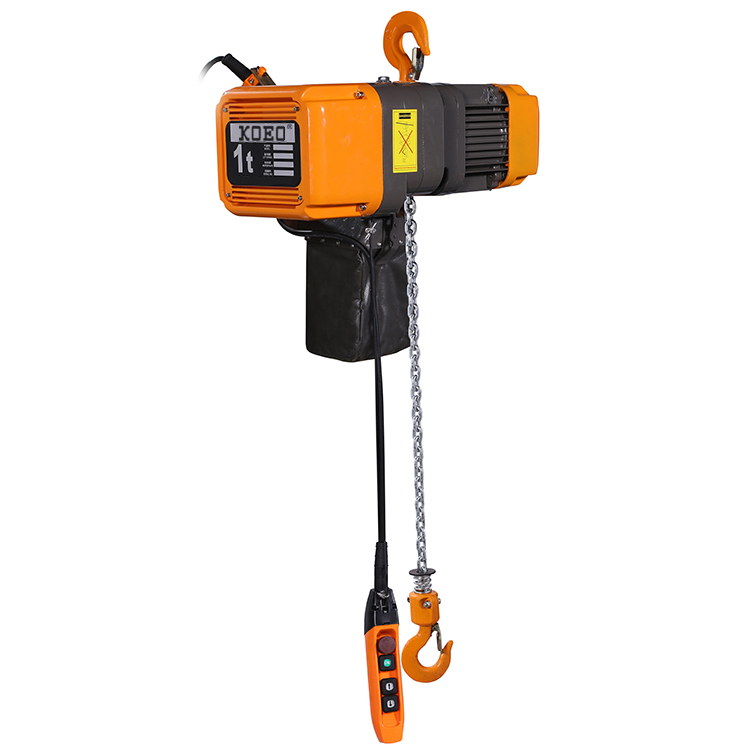

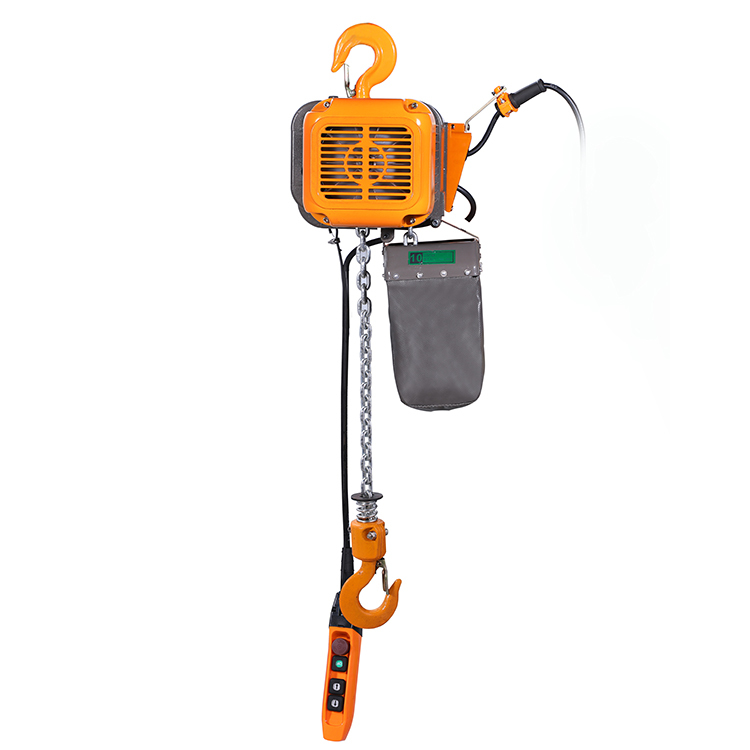

1-5T Single Chain Hook Type Electric Chain Hoist EQ series

No.EQ01-01, EQ02-01, EQ02-02, EQ03-01, EQ03-02, EQ03-03, EQ05-02

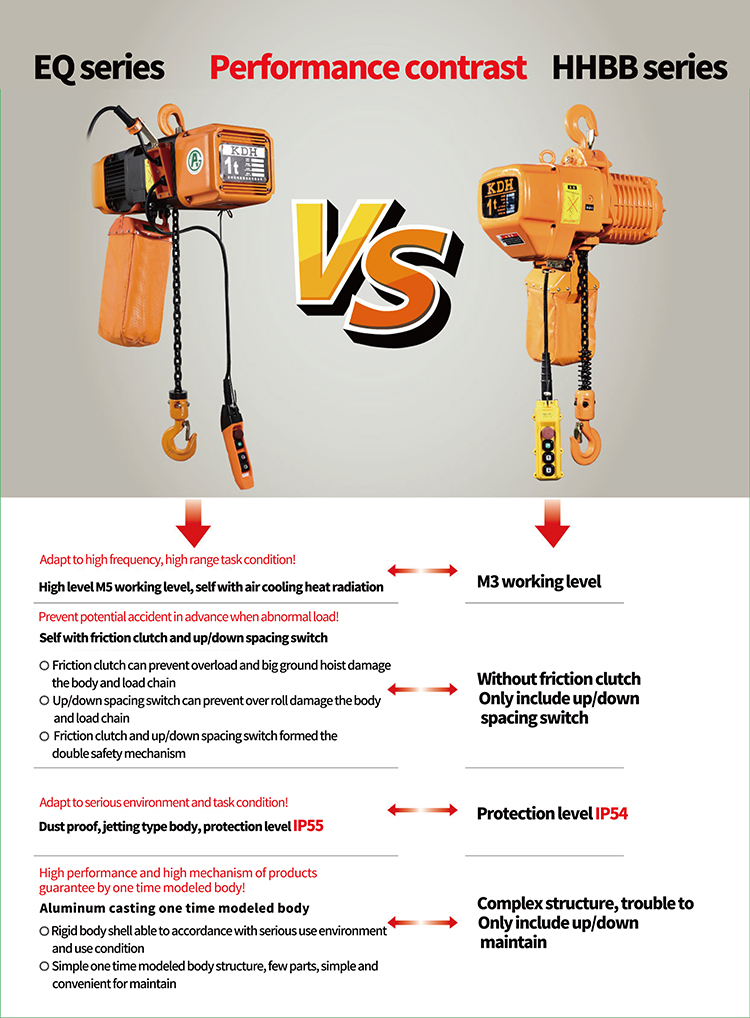

Junchi offers high quality electric chain hoists. EQ series is an upgraded type. We adjust the hoist body to smaller size and greatly improve the performance. It is superior to the HHBB series in all aspects. The capacity range is 0.5-30T.

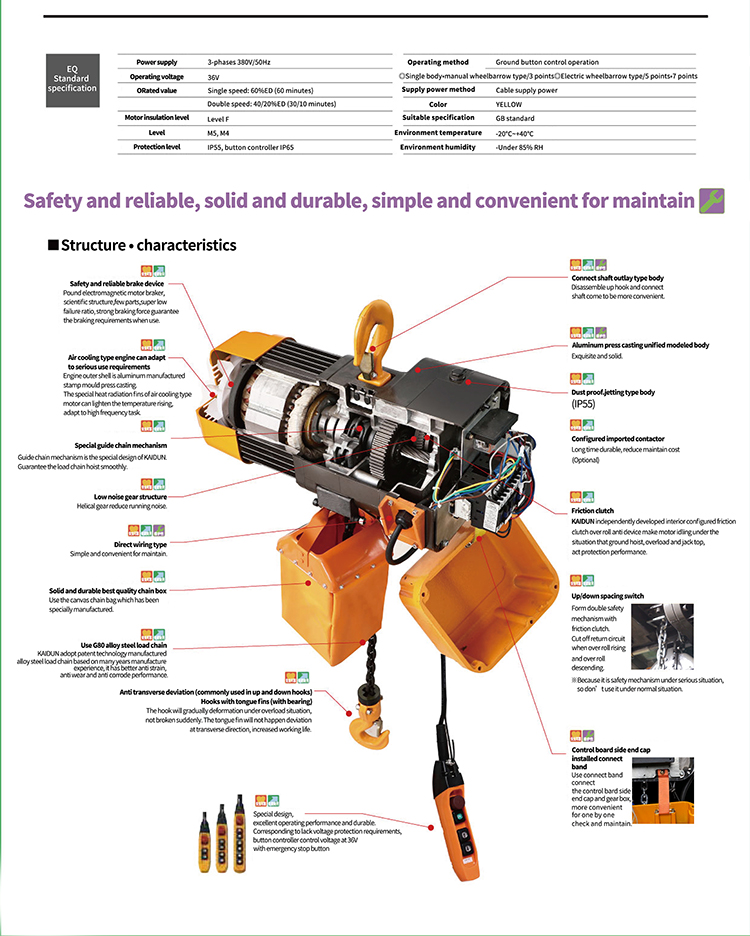

Features:
1. M5 work level: Means a much longer service life.
2. IP55 protection level: Can work continuously for longer periods of time in harsh environments.
3. With friction clutch: Together with up/down limit switch, dual security guarantee.
4. Integrated aluminum casting molding: Lightweight and easy to maintain.
  • 1-5T Single Chain Hook Type Electric Chain Hoist EQ series
  • 1-5T Single Chain Hook Type Electric Chain Hoist EQ series
  • 1-5T Single Chain Hook Type Electric Chain Hoist EQ series
  • 1-5T Single Chain Hook Type Electric Chain Hoist EQ series
  • 1-5T Single Chain Hook Type Electric Chain Hoist EQ series

Description

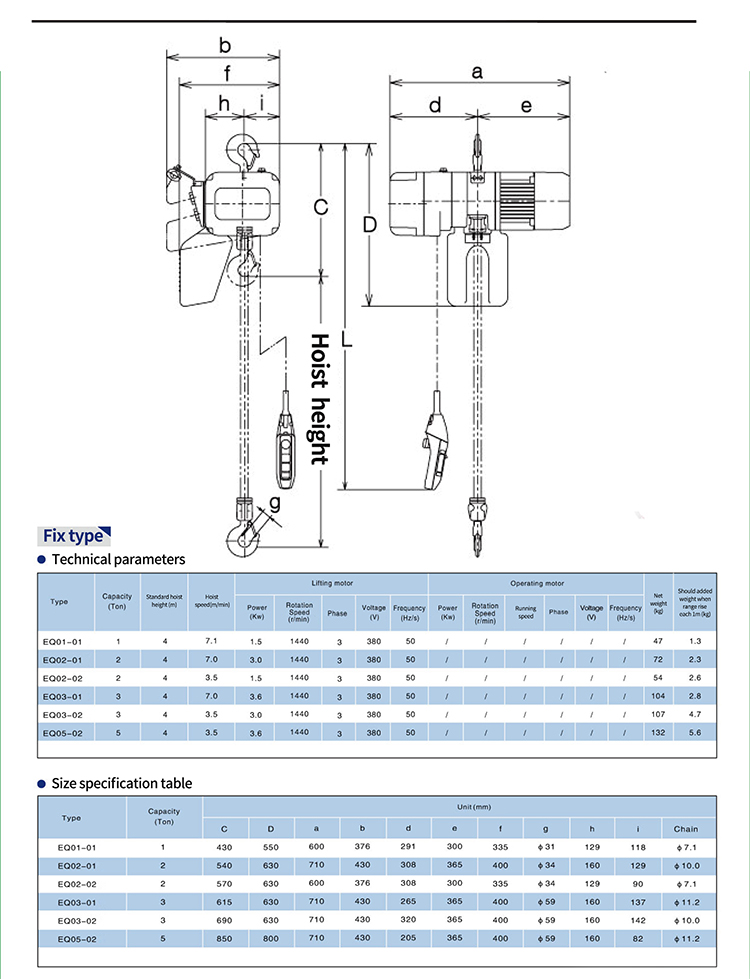

Product parameters
Model Name Lifting weight speed power work duty Insulation class Order quantity Price (USD)
EQ 01-01 EQ Series Hook type  single speed  1T 1T 7.1m/min 1.5KW M5 F 1 445
EQ 02-02 EQ Series Hook type  single speed  2T 2T 3.5m/min 1.5KW M5 F 1 505
EQ 02-01 EQ Series Hook type  single speed 2T 2T 7.0m/min 3.0KW M5 F 1 700
EQ 03-01 EQ Series Hook type  single speed 3T 3T 7.0m/min 3.6KW M5 F 1 722
EQ 03-02 EQ Series Hook type  single speed 3T 3T 3.5m/min 3.0KW M5 F 1 760
EQ 05-02 EQ Series Hook type  single speed  5T 5T 3.5m/min 3.6KW M5 F 1 960
Logistics information
Each product length*width*height (cm) Each piece of merchandise(kg) Delivery period
68*35*52 50 7
68*35*52 60 7
76*40*48 105 7
76*40*61 110 7
76*46*61 120 7
76*49*61 128 7
